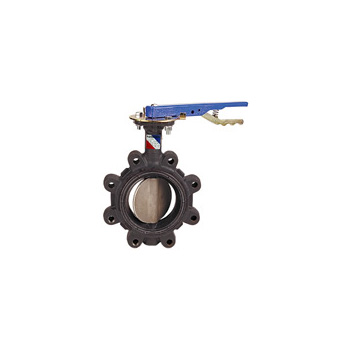

Mueller Industries NPLD2000-3-8 200 PSI Ductile Iron Lug Type Butterfly Valve
Backordered
One or more weeks to deliver. Call or chat to inquire about the availability of this product.
Model: NPLD2000-3-8
UPC: 39923717818
NPLD2000-3-8 Mueller Industries 200 PSI Ductile Iron Lug Type Butterfly Valve
The Mueller Industries lug type butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shutoff at 200 PSI. The valve is ideal for commercial and some light industrial process applications, including HVAC and vacuum services, in addition to hot and cold potable water.
- Valve pressure rating 200 psi
- 225 F continuous and 250 F intermittent service
- Lug style
- EPDM molded-in seat liner
- Aluminum bronze disc
- Stainless steel stem with copper bushings
- Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
- Lead-free*
- Not recommended for steam service
- Designed to meet MSS SP-67
- MSS SP-25 (markings)
- Designed to meet API 609
- U.S. Coast Guard Category A
- California Health and Safety Code Section 116875
