Zoeller M267 Automatic Cast Iron Series Submersible Pump with 10' Cord

M267 Zoeller Automatic Cast Iron Series Submersible Pump with 10' Cord

• Float operated, submersible (NEMA 6) 2-pole mechanical switch
• Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
• Cast iron base on models 267 and 268
• Engineered plastic base on model 266
• Non-Clogging Vortex Impeller Design. Engineered plastic impeller with metal inserts on models 266, 267 & 268 (1 PH).
• Not affected by materials normally found in drainage and sewage pumps
• Stainless steel screws, bolts, handle, guard and arm and seal assembly
• Neoprene square ring & gasket
• Oil-filled, hermetically sealed motor
• Oil lubricated bearings
• Carbon and ceramic shaft seal
• Passes 2" spherical solids
• 2" female and 3" NPT male discharge
• On point: 12" (automatic units); Off point: 4" (automatic units)
• Corrosion resistant powder coated epoxy finish
• Completely submersible
• Watertight and dust tight
• Automatic reset thermal overload protection (1 Phase only)
• Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

Consult factory for special applications:

• Minimum recommended basin size (small load applications): simplex 18" x 30" (45.7 x 76.2 cm), duplex 30" x 36" (76.2 x 91.4 cm)
• High water alarms available
• Standard 267 model: 47.5 lbs (21.5 Kg)
• Approximate gallons pumped out per cycle for standard models:

  Tank Diameter	Gallons / Liters Pumped
  18" (45.7 cm) simplex	8 gallons / 36 liters
  24" (61 cm) simplex	15 gallons / 68 liters
  30" (76 cm) duplex	22 gallons / 100 liters
  36" (76 cm) duplex	33 gallons / 150 liters
  48" (122 cm) duplex	60 gallons / 273 liters

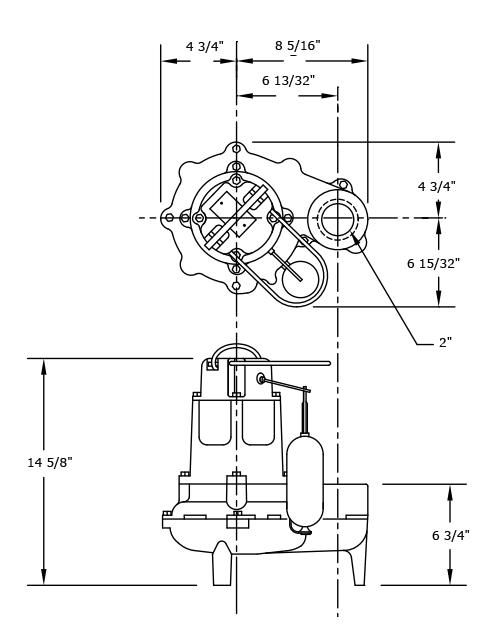

Zoeller M267 Dimensions

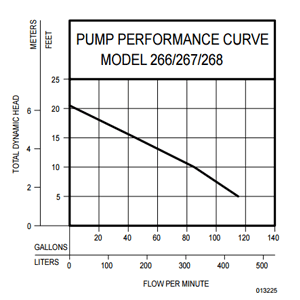

Zoeller M267 Performance Chart

Features:

1. Epoxy coating
Baked on powder-coated epoxy finish prevents pump body corrosion

2. Cord
Sealed water resistant cord with grounded plug for safe operation. UL Listed 3-wire neoprene cord with US or UK plug. 10 ft. (3 m) cord standard for automatic. 15 ft. (5 m) cord standard for nonautomatic. Consult factory for available longer lengths.

3. Switch guard & handle
Stainless steel hardware (screws, bolts, handle, switch guard, switch arm and seal assembly) will not rust.

4. Discharge
2" (DN50) NPT discharge.

5. Cast Iron
Durable cast iron construction. ASTM Class 25 cast iron, switch case, pump housing and base.

6. Motor
1/2 HP 60 Hz motor, 1725 RPM, oil-filled, hermetically sealed, automatic reset, thermal overload protected (1 PH only). Also available in 50 Hz.

7. Float Switch
Float operated, submersible (NEMA 6) 2-pole mechanical switch. Factory tested for reliability. Switch guard design protects float from obstructions.

8. Impeller
Bottom suction vortex impeller design helps prevent clogging. Engineered plastic impeller with metal inserts (1 PH). Available with cast iron impeller option.

9. Shaft seal
Carbon and ceramic shaft seal protects against heat and oil leak failures.
